MPPT Solar Charge Controller
Price:
₹ 2849 /Piece (pc)
Mayank Verma
House No. 54, Gali No. 3, Gangapuram,, Ghaziabad- 201001, Uttar Pradesh, India
Member Since: 1 years
GST: 09AALCM5220C1ZP
Visit Store| Voltage | 12 V |
| Usage/Application | Solar Based battery charger |
| Power | 0.4KW/0.8KW |
| Model Name/Number | OD-MPPT-12/24-50/25 |
| Charge Controller Type | MPPT |
| Brand | MSV |
| Type | Automatic |
| Load Type | DC |
| Current Range | 25A |
| Body Material | MS |
| Dimensions | 180mm*180mm*100mm |
| Battery Type | Lead-Acid (Tubular/SMF) / (Note- Li-ion/Li-Fepo4 Battery solutions available based on requirement) |
| Extended Warranty | 1Year |
| Mounting | Wall mounting |
| Battery Low Cut Off | 10.5V/21.0V |
| Is It Portable | Non Portable |
| Color | White |
| Audible Noise | No |
| Battery Charge Current Maximum | 25A |
| Display Optional | LCD |
| Mppt Tracking Efficiency | UP TO 98% |
| Over Charge Protection | YES |
| Pv Input Voc Maximum | 50V |
| V Max In On Battery Terminal | 32V |
| V Max In On Panel Terminal | 50V |
| Grid Connection | NA |
| Max Dc Output Current | 25A |
| Battery Voltage Range | 12/24 |
| Cooling | Fan(Forced Air Type cooling) |
| Float Voltage | 14.2V/28.4V |
| Maximum Battery Charging Current | 25A |
| Maximum Pv Panel Rating | 400W/800W |
| Mppt Efficiency | >95% |
| Weight | 1.7kg |
| I Deal In | New Only |
| Country of Origin | Made in India |

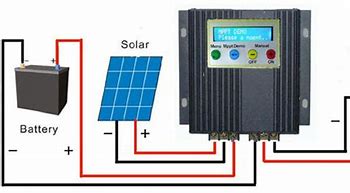

OD-MPPT-12/24-50/25 is a MSV owned OD series MPPT based Solar Charge Controller device. The same device can be used for charging of 12V and 24V battery banks. The controller will sense the battery itself when we power up the system at initial and automatically adjust to a 12V or a 24Vsystem. The maximum output current of the device is 25A and maximum aplicable Solar Open Circuit Voltage is 50V.This system is extensively used to charge a 12V battery from 24V Solar Panel.
24V to 12V Solar Charge Controller
We, MSV Electronics Private Limited, started in the years 2017, are one of the foremost manufacturers of an extensive array of Battery Charger and Power Supply. Our offered range consists of best grade Battery Charger, SOLAR CHARGE CONTROLLER, and POWER SUPPLY. In adding to this, owing to their strong construction, premium quality, long service life, and affordable prices, this battery charger and power supply ranges are highly appreciated among our patrons
