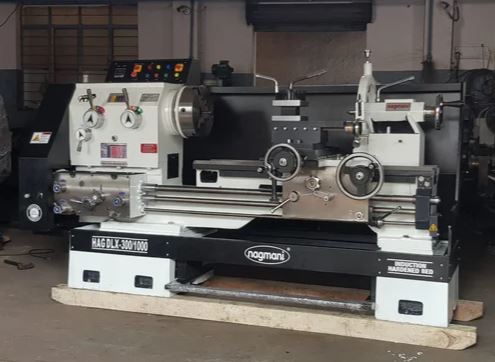

Lathe Machine - 7 Feet Extra Heavy Duty Geared Head

ThumbnailThumbnail
Lathe Machine - 7 Feet Extra Heavy Duty Geared Head

Price:

₹ 960000 /Piece (pc)

Minimum Order:0

Aashif S

NEAR RAILWAY CROSSING, 4-VAIDWADI

Member Since: 0.6 years

GST: 24AATFK0570G1ZA

Visit Store

Product Description

Minimum Order Quantity: 1 Unit



Bed Length7 Feet
Height of Centre406 mm
Swing Over Bed760 mm
Spindle Bore104 mm
Number of Spindle Speeds9
Machine TypeAll Geared Extra Heavy Duty Lathe Machine
Distance Between Centre700 mm
Bed Width457 mm
Swing Over Cross Slide500 mm
Maximum Swing in Gap1050 mm
Spindle Speed Range19-310 RPM
Number of Threads24
Lead Screw Diameter50.8 mm
Cross Slide Travel430 mm
Main Motor7.5 HP
ConditionNew
Lead Screw Pitch2 T.P.I
Tail Stock Spindle Diameter76 mm
Range of Inch Thread2-60 T.P.I
Tail Stock Spindle Travel260 mm
Range of Metric Thread0.5-15 mm
Tail Stock Spindle Taper BoreMT-5
Country of OriginMade in India




"Nagmani Lathe" offers wide range of lathe machines of various sizes, specifications and features depending on the Customer requirement. our Lathe Machines are extensively used in various fields like automobiles/ Rubber Roller / Sugar mill / Paper mill / heavy engineering and over & above all general engineerint maintenance workshop

Extra Heavy Duty Geared Head Lathe Machine is specially Designed for the High RPM Upto 310. The Gears are equipped to obtain different speeds, which can be more than 9 Spindle speeds. This Machine is Widely used in Heavy Rubber Roll Mill, Extra Heavy Works, automobiles, power plants, aerospace, Etc

Features:

  • Flame Hardened Bed Ways
  • Head stock Gears are made up of Special Alloy steel with Hardening processes
  • Headstock Spindle runs on one Tapper Roller Bearing and one Ball Bearing in the Front Side and one Tapper Rollers on the Rear Side.
  • Rigid Headstock design for better performance of the machines
  • A2-8 type Spindle with EN-8 material for better Rigidity
  • Accuracy as per IS Standard
  • Tailstock Spindle EN-8 Harden
  • RPM Range 9 speed 19 to 310
