ECG Machine Yonker 300 G
Price:
₹ 28000 /Piece (pc)
Minimum Order:0
DIMPAL GOSWAMI
Heartbeat Medical Technologies
Member Since: 0.3 years
GST: 24AANFH2132F1ZR
Visit StoreProduct Description
Product Details:
| Number Of Channels | 3 Channels |
| Model Name/No. | ECG3 |
| Brand | YONKER |
| Type | Portable |
| Model Name/Number | 300 G ECG |
| Machine Type | Portable |
| Digital Display | Yes |
| Digital Filtering | Yes |
| Rechargable Battery | Yes |
| Accessories | Power Cord, Patient Cable, User Manual And Warranty Card |

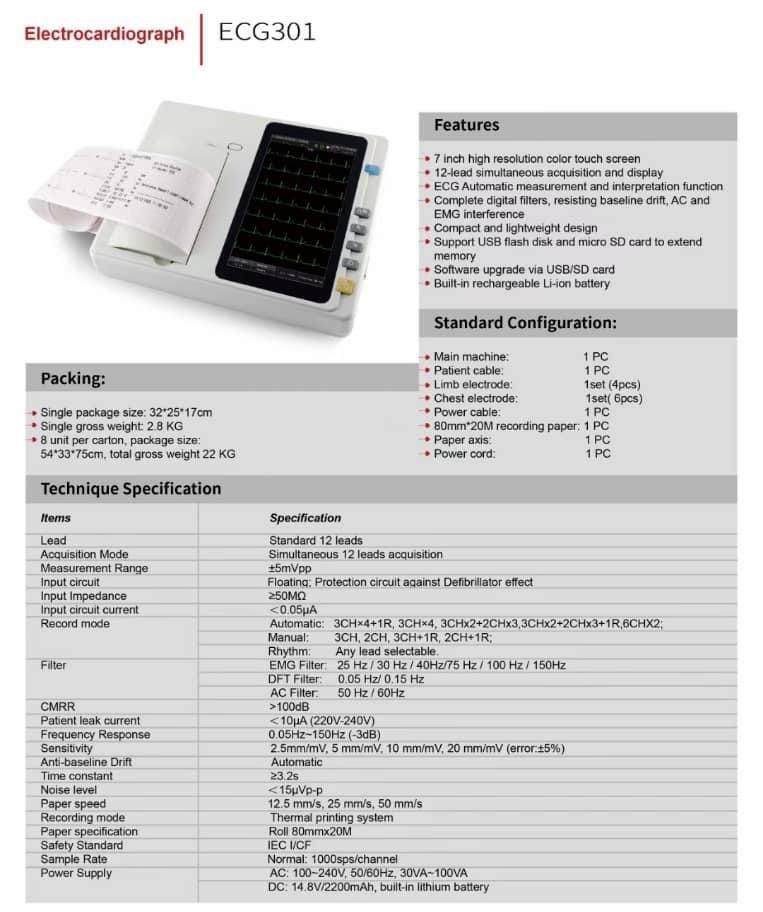

Input circuit Floating, Protection against defibrillator effect
Voltage tolerance 500m V
Time constant 3.2s
Frequent response 0.05Hz~150Hz
Input Impedance 50MO
Input Circuit Current = 0.1µ A
Patient Auxiliary Current < 10µ A (220V-240V/50Hz)
CMRR: = 100dB, with AC Filter
A/D ResolutionA/D: 12bits/1000HZ
Acquisition Mode:Simultaneously acquisition of 12 lead, full
screen display of 12 channel ECG waveforms.
Sensitivity 5 10 20mm/mV
