UV Flatbed Printer 2513

Price:

₹ 2000000 /

Minimum Order:1

Gautam Sehdev

Member Since: 1 years

GST: 07AAFCT4513P1ZZ

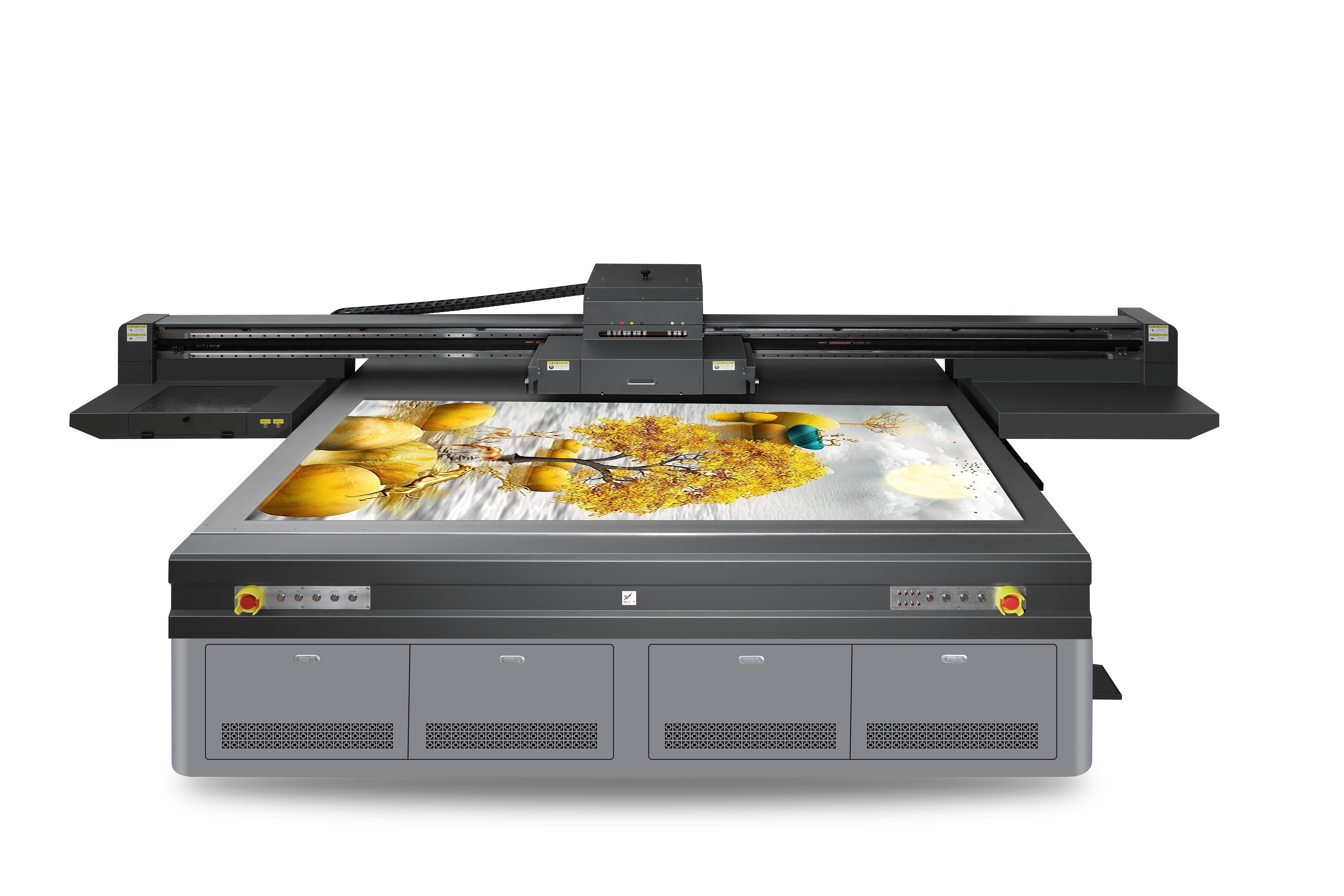

UV Flatbed 2513 is a high-quality large format UV flatbed printer for industrial-level production. It supports 2-4pcs of Ricoh GEN5 printheads which allows for a wide range of speed requirements. It can directly print on metal, wood, Tiles, pvc, plastic, glass, and Sunboard etc.

Model	F 2513 (V)
Max. Printing Size	2500mm x 1300mm
Printhead Tech.	Drop On Demand Micro Piezo Electric Inkjet
Printhead	RicohGen5
Print Resolution	720 x 1200dpi(Max)
Print Head No	2
Optional Color Configuration	CMYK W, CMYK LcLm, CMYK LcLm W, CMYK CMYK, CMYK WV, CMYK LcLm WV
Max. Media Thickness	0-90mm
Ink Supply System	Negative Pressure Auto Ink Supply
Drying System	UV Lamps Instant Drying
Media Absorption	Vacuum Enabled
Table Pressure	100kg per sq.m
Printable Media	“Glass, Ceramic, PVC, Wood, Metal, Sunboard, Acrylic, MDF, Metal Almirah, Sunpack & All Rigid Materials etc.”
Interface	HI SPEED USB 2.0
Operating system	Win7/10 64bits
Image Format	TIFF/JPEG/EPS/PDF/AI
Rip Software	Photoprint Dx12,Onyx(optional)
Power / Maximum Power	AC 220V , 50/60 Hz / >30A; 6.5KW
Operational Environment	Temprature : 18C ~ 22C (in degree), Humidity 35% RH ~ 65% RH
Dimensions	4100 x 2000 x 1350 (mm)
